HD audio cables


Joined
May 7, 2021
Messages
3
Reaction score
0

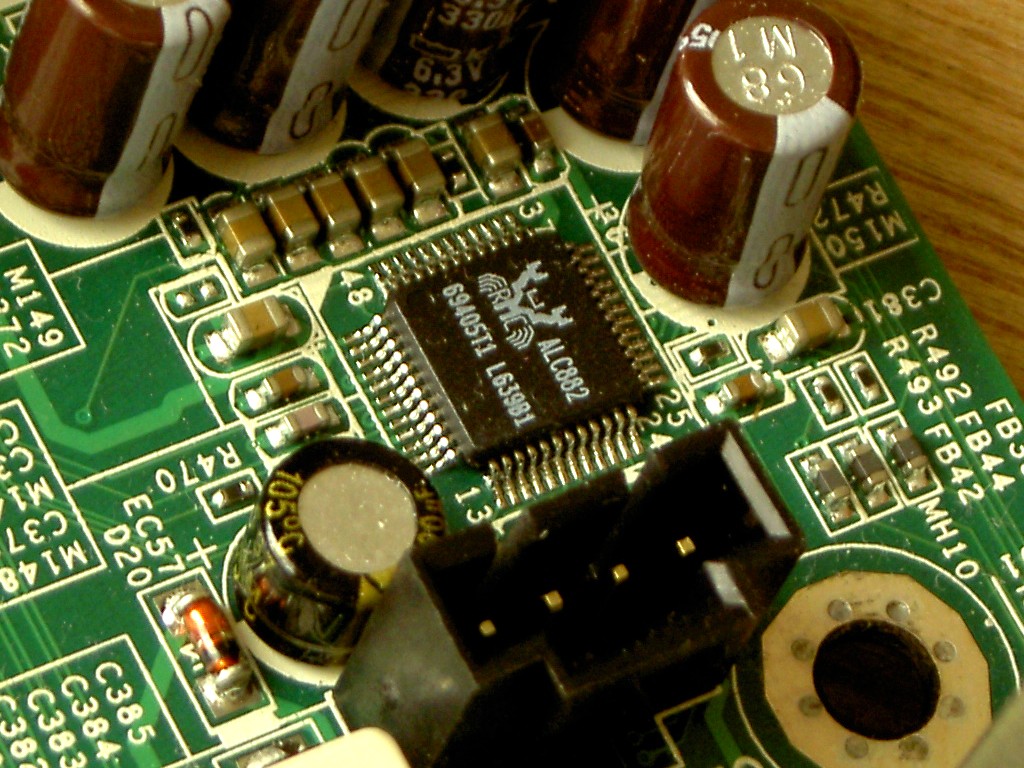

hi please see photo
Why in some motherboard hd audio cables... pins two and four are connected ??? Is it needed?

Ad

Advertisements

muckshifter

I'm not weird, I'm a limited edition.
Moderator
Joined
Mar 5, 2002
Messages
25,662
Reaction score
1,158
Computer motherboards often provide a connector to bring microphone and headphone signals to the computer's front panel. Intel provides a specification for that header, but the signal assignments are different for AC'97 and HD Audio headers.[10]

The pin assignments for the AC'97 and HD Audio connectors are:[10]


Ad

Advertisements

Joined
May 7, 2021
Messages
3
Reaction score
0
Computer motherboards often provide a connector to bring microphone and headphone signals to the computer's front panel. Intel provides a specification for that header, but the signal assignments are different for AC'97 and HD Audio headers.[10]

The pin assignments for the AC'97 and HD Audio connectors are:[10]

Thank you for your guidance. Therefore, it can be concluded that in cable Hd audio..., pins two and four should be connected with a short wire. it's true?
