Intel LGA1155 i7 2600K w/ Biostar P67 achieve 5GHz Air cooling

Joined
Dec 1, 2008
Messages
723
Reaction score
46
CPU
Intel Core i7-2600K
32nm, 4C8T


MB BIOSTAR TP67XE
Chipest Sandy Bridge - Cougar point




DDR3
CORSAIR DOMINATOR-GTX3 DDR3-2400


CL9 11-9-27 1.65V



System Configuration
CPU: Intel Core i7-2600K
MB: BIOSTAR TP67XE
DRAM: CORSAIR DOMINATOR-GTX3 DDR3-2400
VGA: GIGABYTE GTX260 OC
HD: CORSAIR CSSD-F40GB2 Raid 0
POWER: Antec TPQ-1200W
Cooler: Mega Shadow Deluxe Edition
OS: Windows7 Ultimate 64bit


Default Performance
CPU 100 X 35 => 3500MHz (Idle 1.044V, Full 1.008V)
DDR3 2133.8 CL9 10-9-27 1T 1.5V

Hyper PI 32M X8 => 14m 24.460s
CPUMARK 99=> 539


Fritz Chess Benchmark => 27.53/13212
AIDA64 Memory Bandwidth - 21901 MB/s

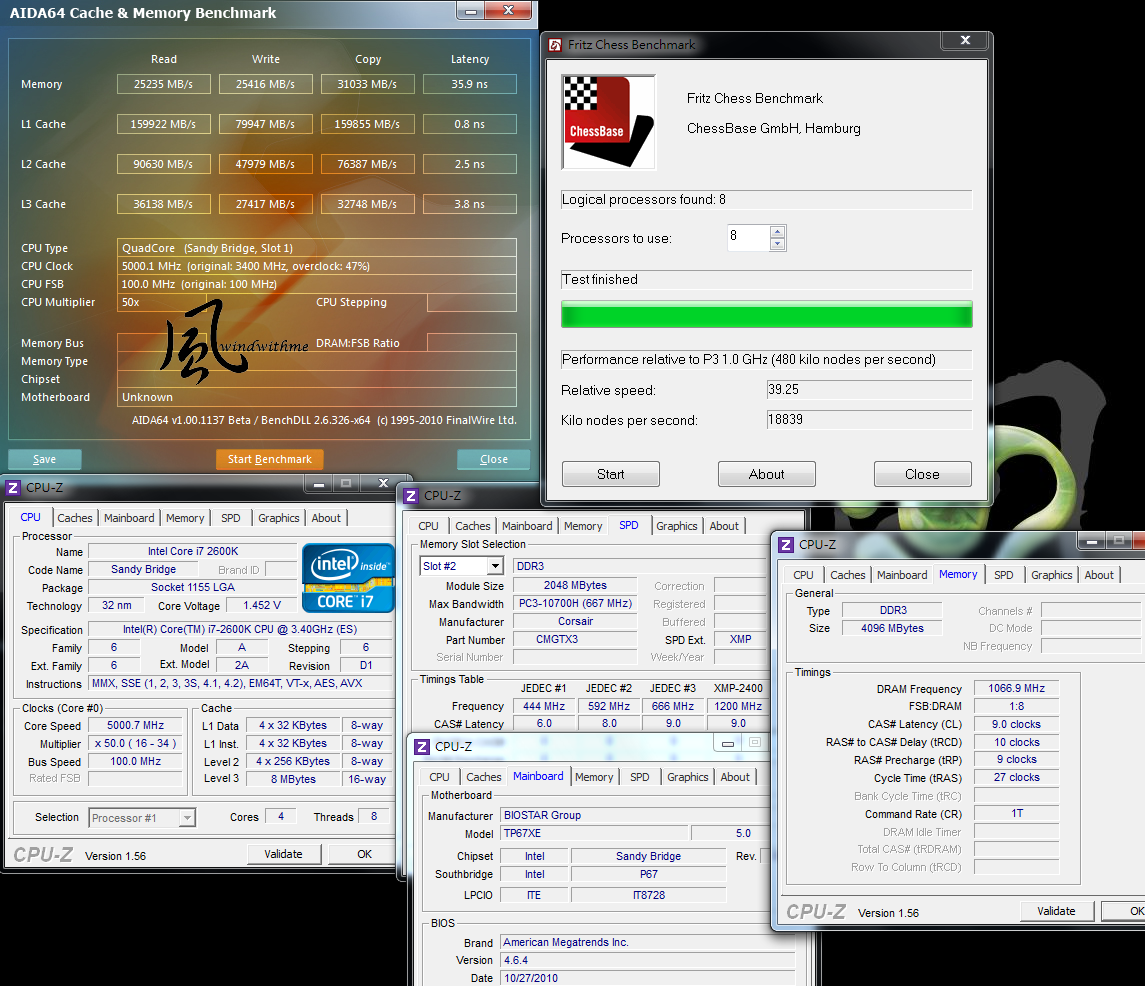

OC Performance
CPU 100 X 50 => 5000MHz (Idle 1.452V, Full 1.392V)
DDR3 2133.8 CL9 10-9-27 1T 1.5V

Hyper PI 1M => 07.551s
CPUMARK 99=> 770


Fritz Chess Benchmark => 39.25/18839
AIDA64 Memory Bandwidth - 25235 MB/s


This article is also posted in my blog: WIND'S 3C
Welcome 3C fans to drop by.

Thanks :)
